Emicon - Air & Water Cooled Chillers

Air Cooled Chillers

Air cooled water chillers with Turbocor centrifugal compressors (RAC), semi-hermetic screw compressors (RAH) and high efficiency scroll compressors (RAE) designed for external location.

The RAE range is also available for internal location with centrifugal fans.

The chillers are complete with microprocessor control with digital display panel, and give full BMS interface for end user digital control.

All models available in ‘S’ silent and ‘U’ ultra-silent versions.

Heat recovery and / or ‘free cooling’ models.

RAC…Ka (R134A)
click image to enlarge

Cooling Capacity :- 250 Kw – 1000 Kw

Packaged air cooled water chillers with Turbocor centrifugal compressors.

Available from 2009. Contact us for further details.

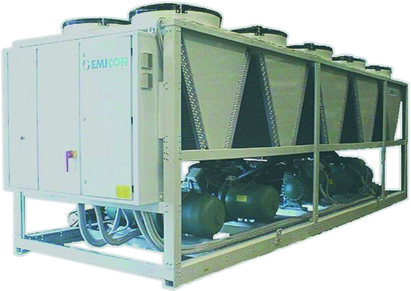

RAH…K ( R407C) & Ka (R134A) Series
click image to enlarge

Cooling Capacity :- 190 Kw-2070 Kw

Packaged air cooled water chillers with semi-hermetic screw compressors independently circuited with the option of stepped or fully modulating capacity control.
Complete with shell & tube evaporator, high efficiency condensing coils with low noise ‘wing profile’ axial flow fans, microprocessor control with digital display panel.

Heat Pump version up to 840 Kw.

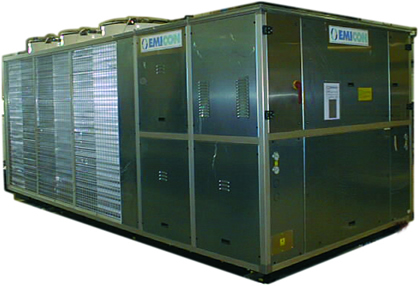

RAE…K (R407C) & Ka (R134A) Series
click image to enlarge

Cooling Capacity :- 5 Kw–330 Kw

Packaged air cooled water chillers with high efficiency hermetic scroll compressors. Designed for external location with axial fans or internal location with centrifugal fans.
Complete with brazed plate evaporators, high efficiency condenser coils, microprocessor control with digital display.

Also as Heat Pump units

To request a brochure please contact us

Water Cooled Chillers

Water cooled water chillers withTurbocor centrifugal compressors (RWC), semi-hermetic screw compressors (RWH), and high efficiency scroll compressors (RWE), designed for internal plant room location.
Refrigerant circuits complete with thermostatic expansion valve, dehydration filters,shut off valves, HP/LP switches/gauges.
Electrical panels are CE compliant with microprocessor control and display panel, offering full BMS interface for end user digital control.

These units operate with externally located Emicon ‘ARW’ remote dry air coolers or cooling towers.

Also available as condenserless units, matched to Emicon ‘CR’ remote air cooled condensers.

Heat pump versions for RWE & RWH

RWC…Ka (R134A).
click image to enlarge

Cooling Capacity :- 250 Kw – 1000 Kw

Packaged water cooled water chillers with Turbocor centrifugal compressors.

Available from 2009. Contact us for further details.

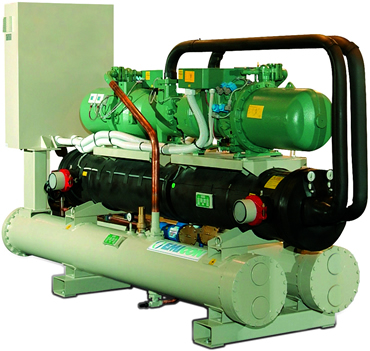

RWH…K (R407C) & Ka (R134A) Series

Cooling Capacity :- 90 Kw – 2,650 Kw

Packaged water cooled water chillers with semi-hermetic screw compressors independently circuited with the option of stepped or fully modulating capacity control.

Complete with shell & tube evaporators and condensers, microprocessor control with digital display panel.

RWE…K (R407C) & Ka (R134A) Series
click image to enlarge

Cooling Capacity :- 5 Kw – 350 Kw

Packaged water cooled water chillers with high efficiency hermetic scroll compressors.

Compact design with brazed plate evaporators and condensers, microprocessor control with digital display.

To request a brochure please contact us
